Product Detail
Home
3190757

3190757

Tie Rod Assembly

Swipe right for technical information reference picture
Suitable for
CARRARO, CATERPILLAR
References
CARRARO
143727
CATERPILLAR
2099886
Tie Rod Assembly1
Discover the Features
Technical Information
L1 Length
566 22 ⁹/₃₂" (22.283")
d1 Cone Ø
23,5 0.925"
d2 Cone Ø
26,5 1.043"
A1 Taper
1/10 1.20"
J1 Ball stud
M20x1,5 RHT M20x1,5 RHT
B1 Thread
M24x1,5 RHT M24x1,5 RHT
B2 Thread
M22x1,5 RHT M22x1,5 RHT
G1 Pipe/Shaft Ø
34 1.339"
Swipe right for technical information reference picture
Add to Offer List

Components

3190952 (X 1)
Inner Tie Rod End
Technical Information
L1 Length
405
d1 Cone Ø
23,5
d2 Cone Ø
26,5
A1 Taper
1/10
J1 Ball stud
M20x1,5 RHT
B1 Thread
M24x1,5 RHT
G1 Pipe/Shaft Ø
34

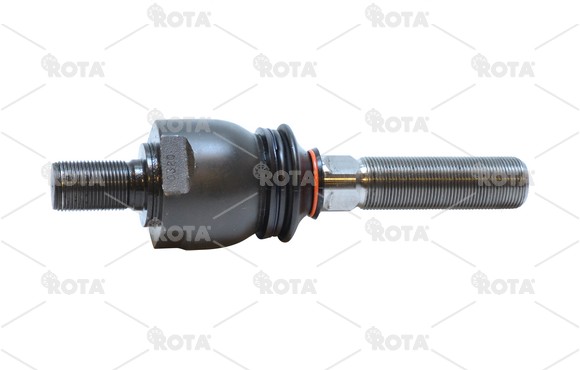

3190808 (X 1)
Axial Joint
Technical Information
L1 Length
209
B1 Thread
M24x1,5 RHT
B2 Thread
M22x1,5 RHT
Note

Reference numbers and brands are provided only for comparison purposes. These details are not indicated in the delivery notes and invoices. All technical information and reference numbers here have been provided after a careful research. ROTA disclaims any responsibility for problems that arise from using these information. ROTA reserves all its rights to make changes and modifications to the technical information and product designs.
